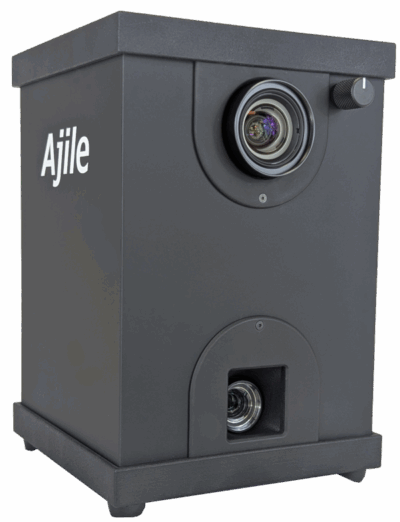

DepthScan Inspection Platform: metrology-grade 3D inspection from lab to inline

Configurable 3D structured light platform with native PolyWorks integration. Five possible cell configurations available. Verified accuracy per VDI/VDE 2634 Part 2.

Download product sheet:

Unmatched 3D capabilities

The Ajile 3D camera is designed to support a wide variety of applications. Including robotic guidance, general quality control and metrology-grade inspection. The system has the flexibility to capture accurate high-resolution full color point clouds as well as the ability to collect 3D images of moving objects.
Contact Us
1
color 3D points per scan
The DepthScan captures 4 million color 3D points in full-resolution mode in 400 ms (2.5 Hz max). Synchronous output with capture - the point cloud is available immediately for analysis.
1
µm
μm sphere-spacing accuracy
Verified per VDI/VDE 2634 Part 2 at 500 mm working distance, full-resolution mode. Sphere-spacing 0.0283 mm, probing form 0.1514 mm, probing size 0.0317 mm, flatness 0.2535 mm. Certificate VDI-20260223-0001. Noise floor 30 to 33 μm RMS on certified flat. Additional certificates per unit and working distance available on request.
1
fps
fps high-speed mode
High-speed mode reaches 30 fps at full ROI and 100+ fps with reduced ROI. Optimized for inline conveyors, moving objects, and high-throughput inspection.

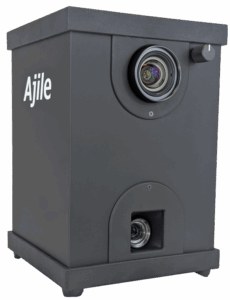

DepthScan product family

All models share the same flexible platform with unique capabilities for different applications
Request Quote
View Demos
Key Features

Unleash your potential with the latest in 3D imaging technology

Full-color 3D imaging

Our flagship system, with powerful LED structured light and color balancing software to deliver true color 3D data.

3D Imaging in NIR

Capture 3D data quickly and accurately with our 840nm NIR system. Invisible to the human eye, this is ideal for many medical applications.

Autofocus 3D Capture

Automatically refocus in software at working distances from 25 to 500cm for bin picking, part inspection, and robot control.

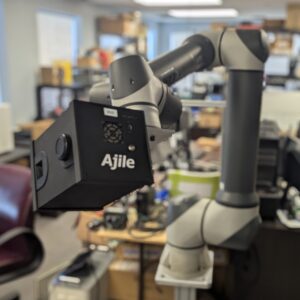

Robot Integration

Easily calibrate Ajile DepthScan captures with robot space for accurate control of a range of robots.

Multi-DepthScan Imaging

Automatically stitch captures from multiple cameras to quickly and accurately image parts with occlusions, reflective surfaces, or other challenging features.

Automated 3D Analysis

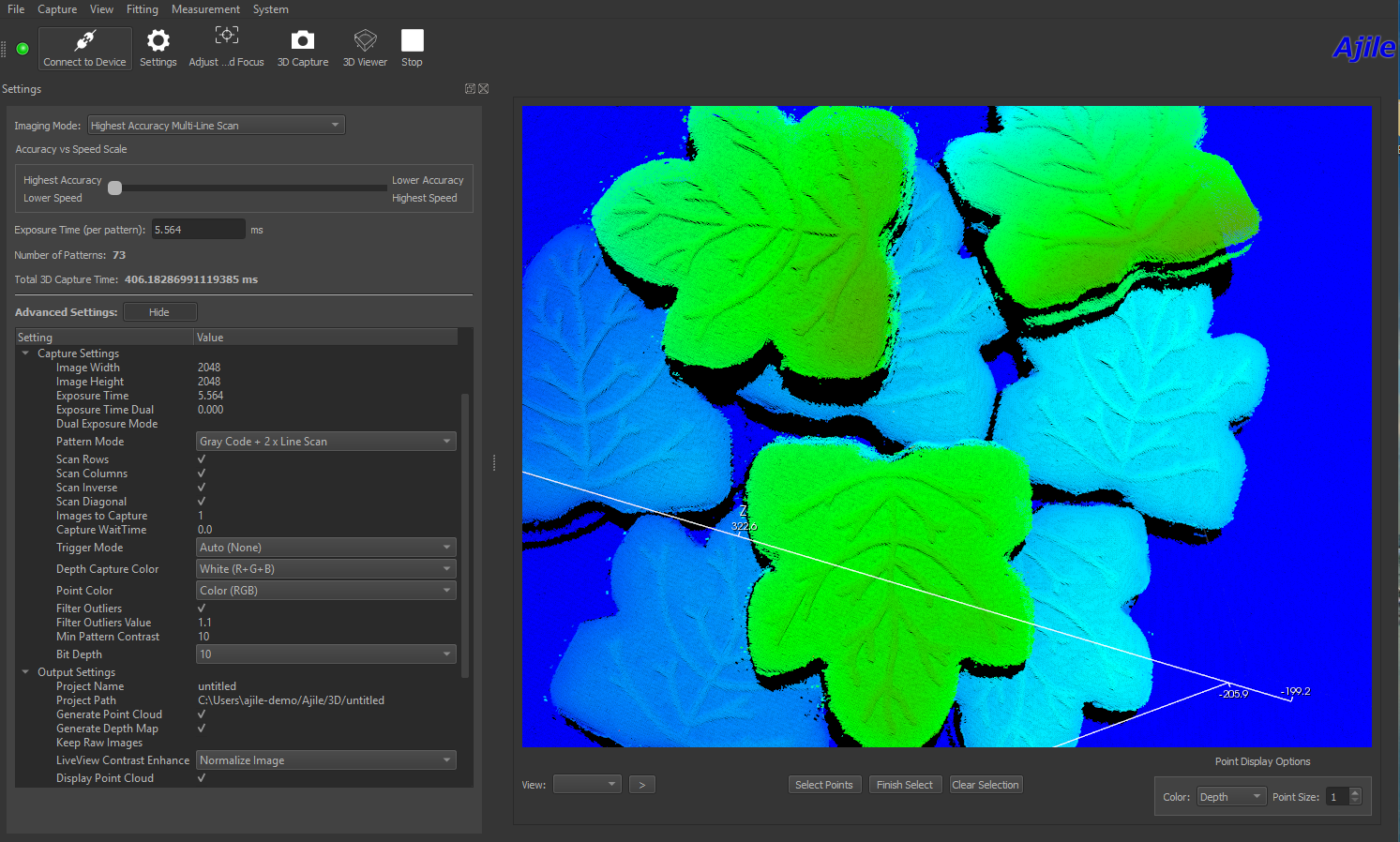

The Ajile 3D Vision Studio automates processes for point cloud analysis, measurement, and interaction with 3rd party software platforms already in use by customers.
Our clients

Our commitment to clients worldwide

3D Applications

Sample Scans

Click to screen captured video, or click here for interactive models and imaging details.

Frequently Asked Questions

01
Does Depthscan integrate with 3rd party inspection software tools?
Yes, Ajile's 3D software suite is compatible with other platforms. Plugins are available in many cases, allowing users to operate the Depthscan from within those applications as well.
02
Do you support ROS?
Yes, ROS is supported. Integration support is available upon request, or users may wish to do their own integration using the Ajile 3D SDK.
03
How can the inspection process be automated?
Ajile's process flow software enables quick setup for repeated processes. Over 100 process nodes are available, including steps for capture, filtering, processing, and analysis.
04
Which Depthscan model is recommended for my imaging conditions?
The Depthscan is a variable working distance system capable of imaging targets from 25cm to 500cm. If multiple working distances are needed, the autofocus version is recommended.
05
What are the Depthscan's eye safety requirements?
The Depthscan is an LED-based structured light system, and does not use lasers which would require googles, screens, or glasses.
06
Does the software require an internet connection to run?
No, the Ajile 3D GUI and SDK are software installations which do not require a cloud connection.
